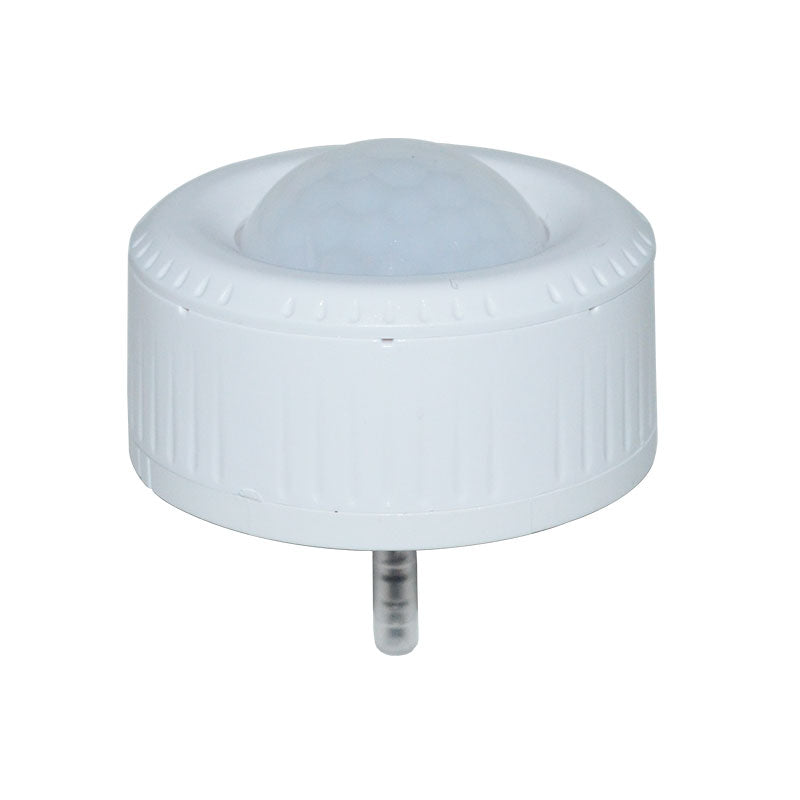

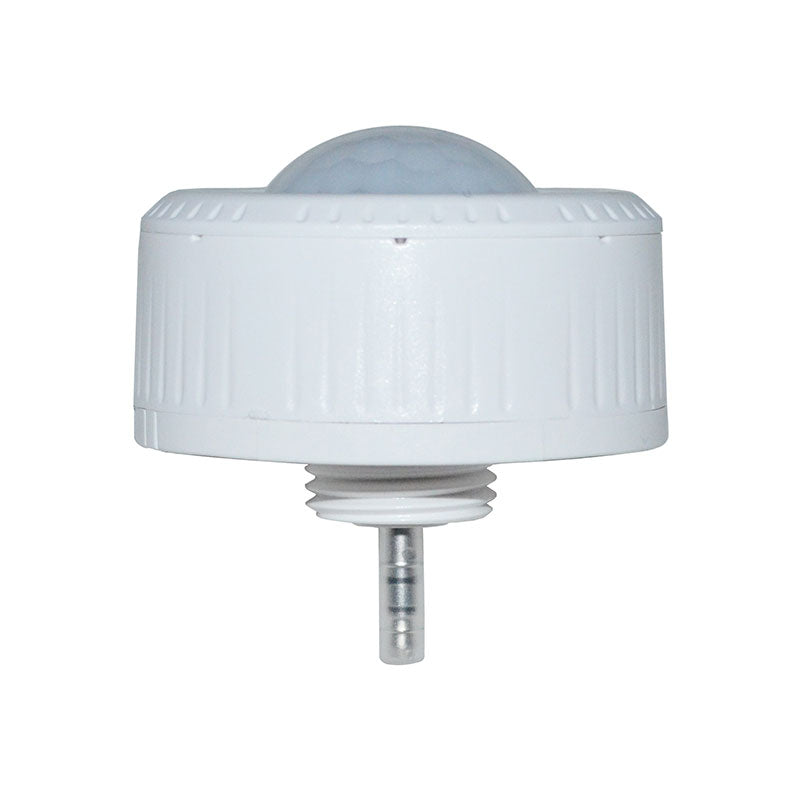

Sharkward ANT-6-4T Plug-In PIR Motion Sensor | Bi-Level Dimming for High Bay LED Lights

The Sharkward ANT-6-4T Plug-In Bi-Level PIR Motion Sensor is an intelligent control solution designed for UFO high bay and outdoor LED fixtures. It provides multi-level lighting control based on both motion detection and ambient daylight, helping you optimize energy savings and comfort in large spaces.

Compatible with 0–10 V dimmable LED drivers or ballasts, this sensor features adjustable detection zones, time delay, and brightness levels. Its IP65-rated waterproof housing and wide 12–24 V DC operating range make it ideal for use in warehouses, factories, and gymnasiums, even in cold or humid conditions. All settings can be conveniently configured via a wireless remote control, enabling quick commissioning and flexibility in the field.

⚙️ Key Features

• Operating Voltage: 12–24 V DC

• Dimming Control: 0–10 V dimming output, compatible with most LED drivers

• Detection Radius: Adjustable 20 % / 50 % / 75 % / 100 % (1 – 8 m)

• Mounting Height: Up to 50 ft (15 m) for high bay applications

• Time Delay Settings: 10 s / 1 min / 5 min / 10 min / 15 min / 20 min / 30 min / 60 min

• Light Level Control: 24 h / 10 lux / 30 lux / 50 lux modes

• Ingress Protection: IP65 waterproof design for wet locations

• Configuration: Wireless remote control (sold separately)

• Warranty: 5 Years

💡 Applications

• LED UFO high bay lights

• Warehouse and factory lighting control

• Gymnasiums and sports halls

• Cold storage facilities

• Outdoor area and canopy lights

• Distribution centers and loading docks
