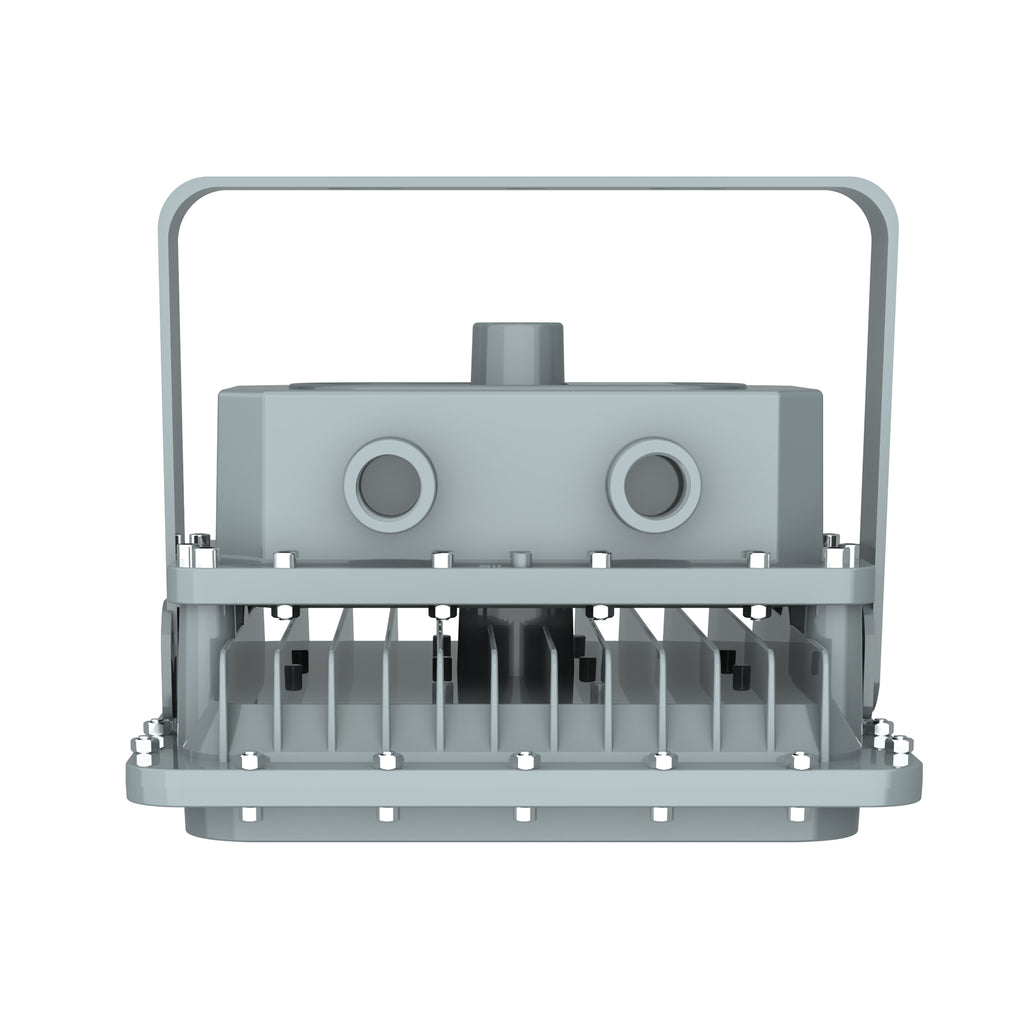

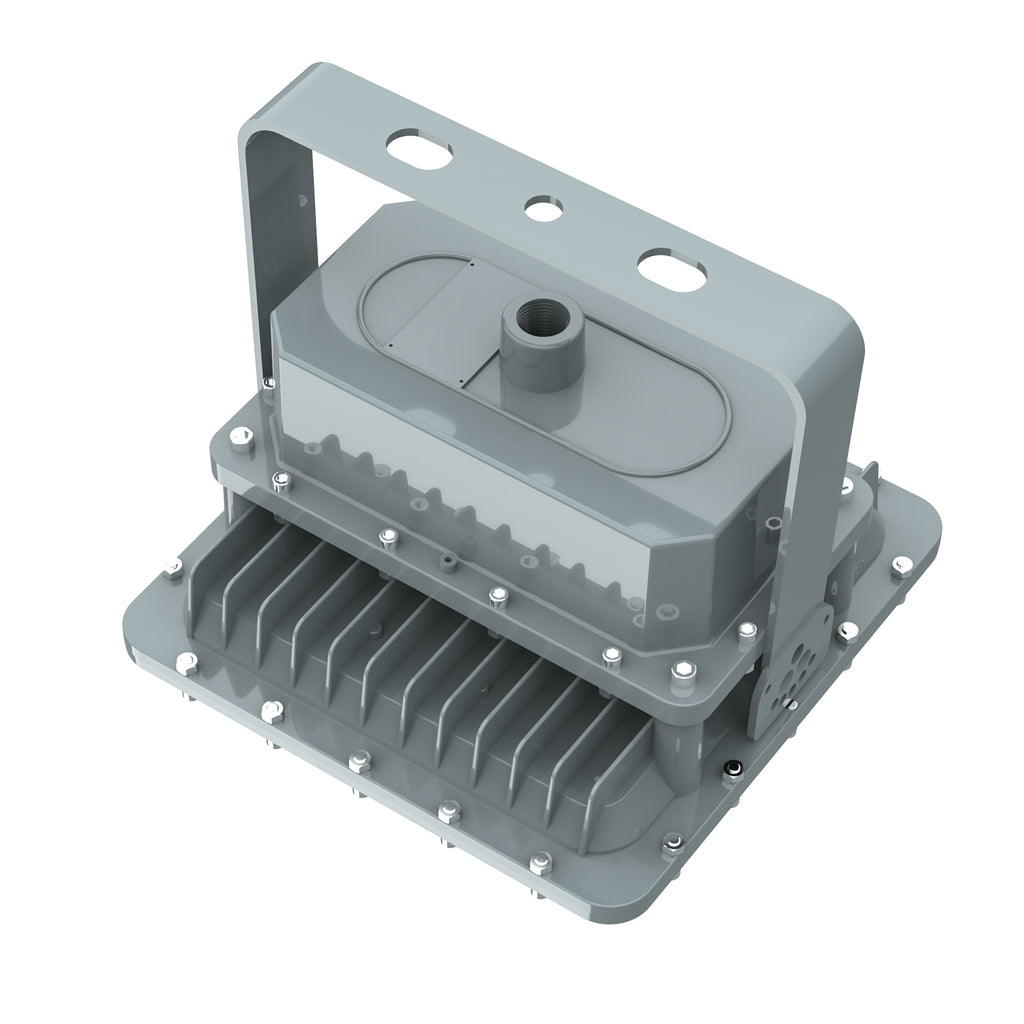

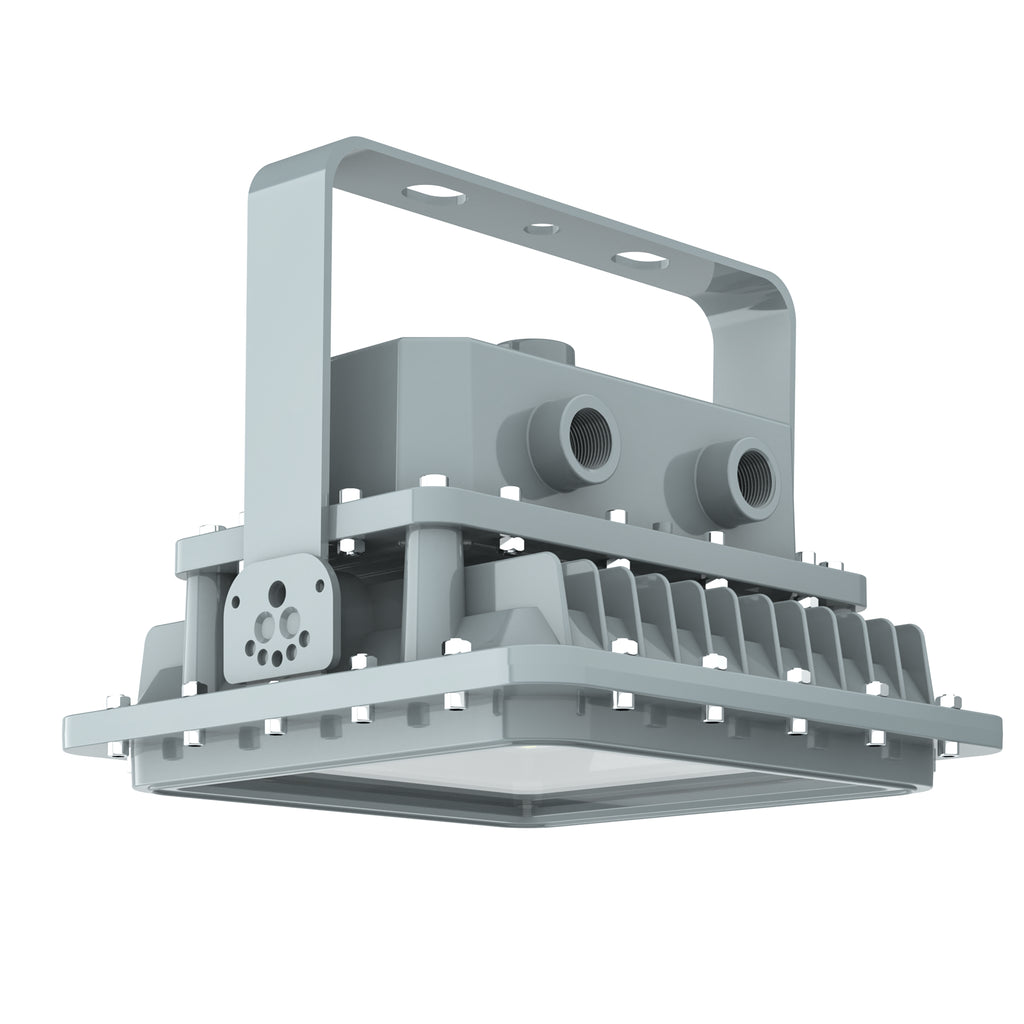

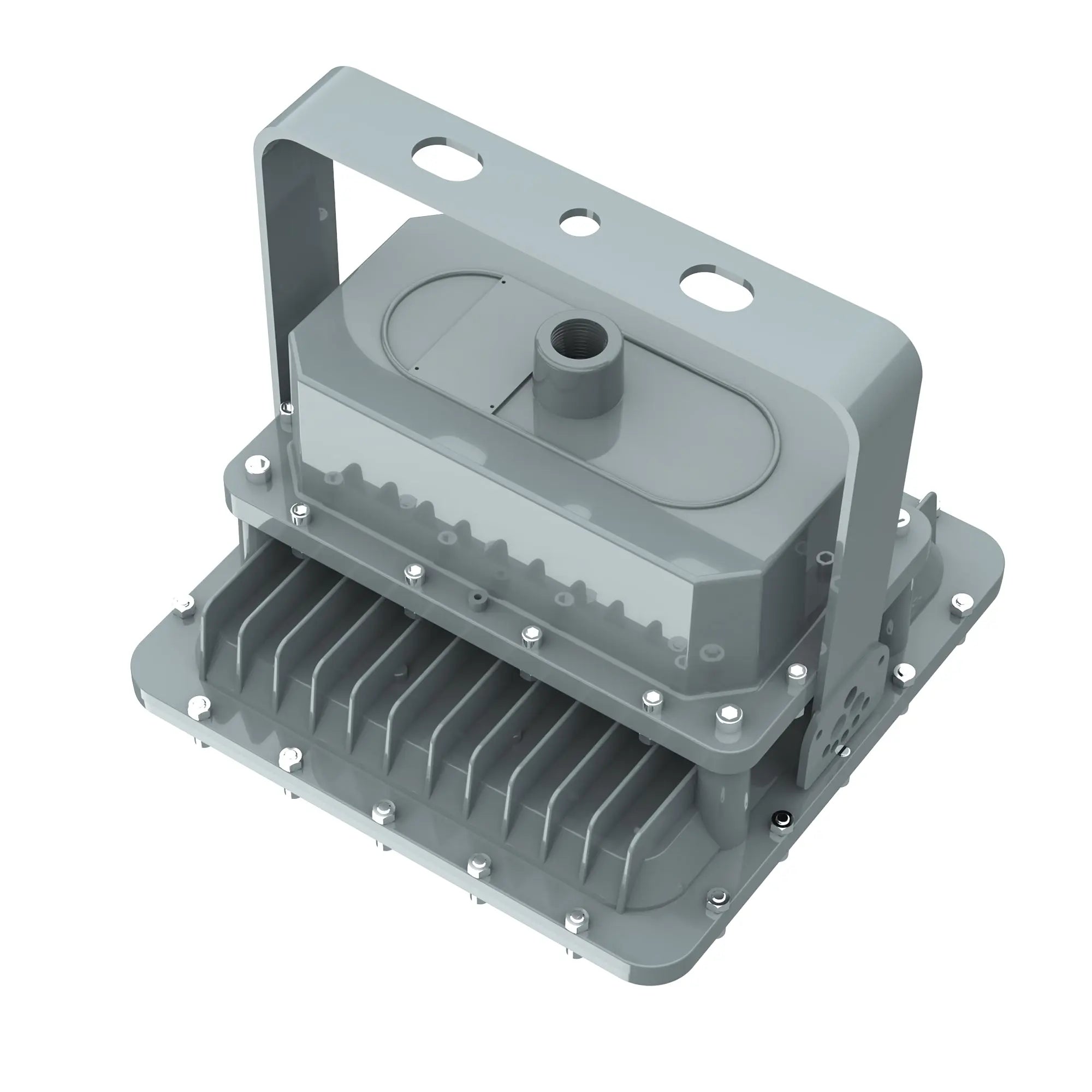

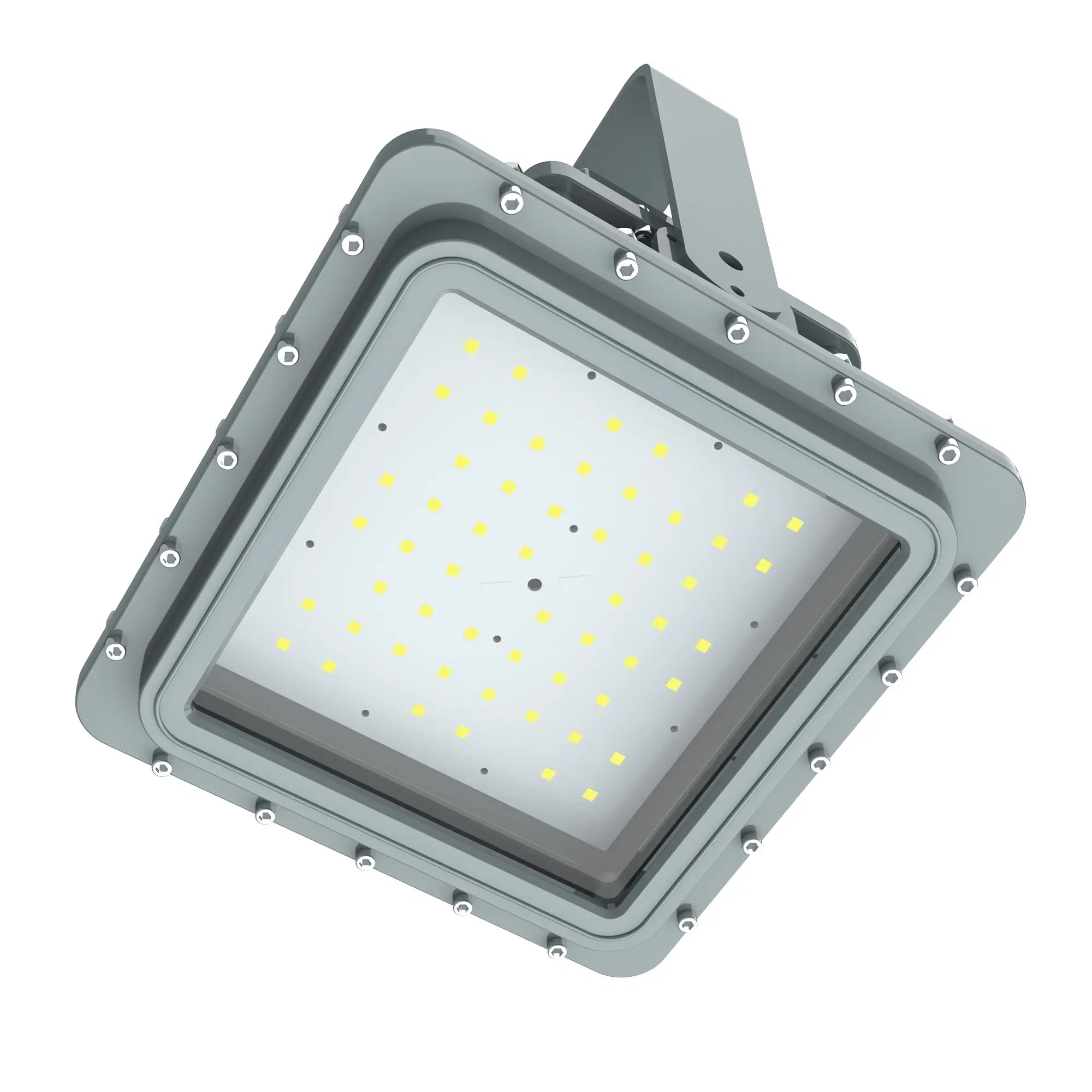

150W LED Explosion Proof Square Light | Class I Division 1 & 2 | 5000K Dimmable | 20,250 Lumens | ETL & UL Certified

Engineered for the most demanding hazardous environments, the TANLITE 150W LED Explosion Proof Square Light delivers powerful, reliable illumination with 20,250 lumens of bright 5000K daylight. Designed for Class I Division 1 and Division 2 locations, this fixture ensures safety, durability, and high performance in oil, gas, chemical, and industrial facilities.

Its low-profile, corrosion-resistant housing and sealed optical chamber protect against dust, vapors, and moisture—ideal for harsh or explosive atmospheres. The dimmable driver supports energy-efficient operation and control system integration, while universal voltage input (AC 100–277V) allows for flexible installation.

Key Features

• Explosion-proof build: Certified for hazardous locations; ETL & UL approved

• High-performance output: 150W, 20,250 lumens (≈135 lm/W) at 5000K daylight

• Energy-efficient dimming: Compatible with standard dimming controls

• Universal voltage: AC 100–277V, 50/60 Hz

• Rugged construction: Heavy-duty, corrosion-resistant housing with an impact-resistant sealed lens

• Reliable operation: Instant on, flicker-free, and low maintenance

• Flexible installation: Pendant, wall, ceiling, or bracket mounting (model dependent)

Certifications:
ETL Certificate
UL1598 / UL1598A / UL844 / UL924 / ABS
Class I, Division 1, Groups B, C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III

Applications

Perfect for lighting classified hazardous and industrial environments such as:

• Oil & gas facilities: refineries, terminals, tank farms, and compressor rooms

• Chemical and petrochemical processing plants

• Grain handling, flour, and feed mills (dust Groups E/F/G)

• Pulp & paper, textile, and wood processing industries

• Wastewater treatment and battery charging areas

• Marine/offshore and shipboard installations (ABS-rated environments)

• Hazardous warehouses, loading bays, paint booths, and spray zones
