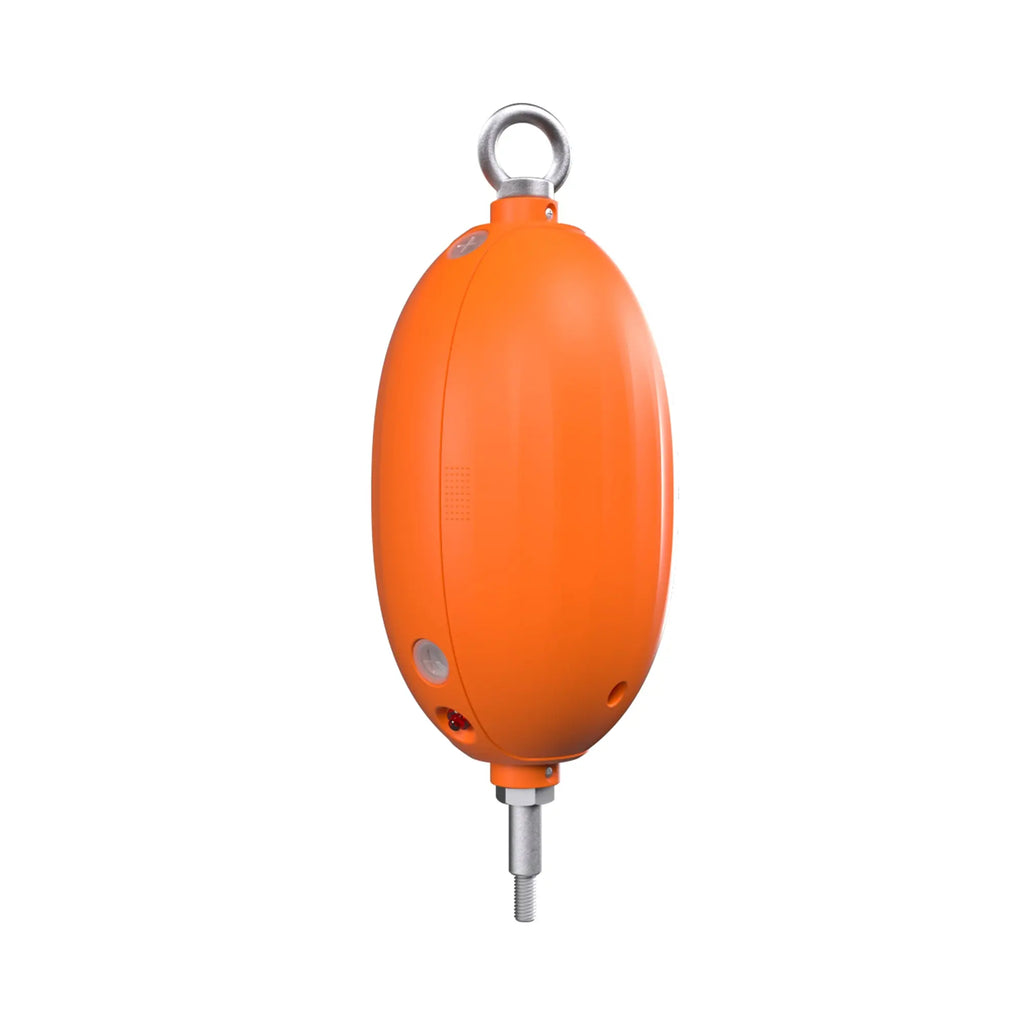

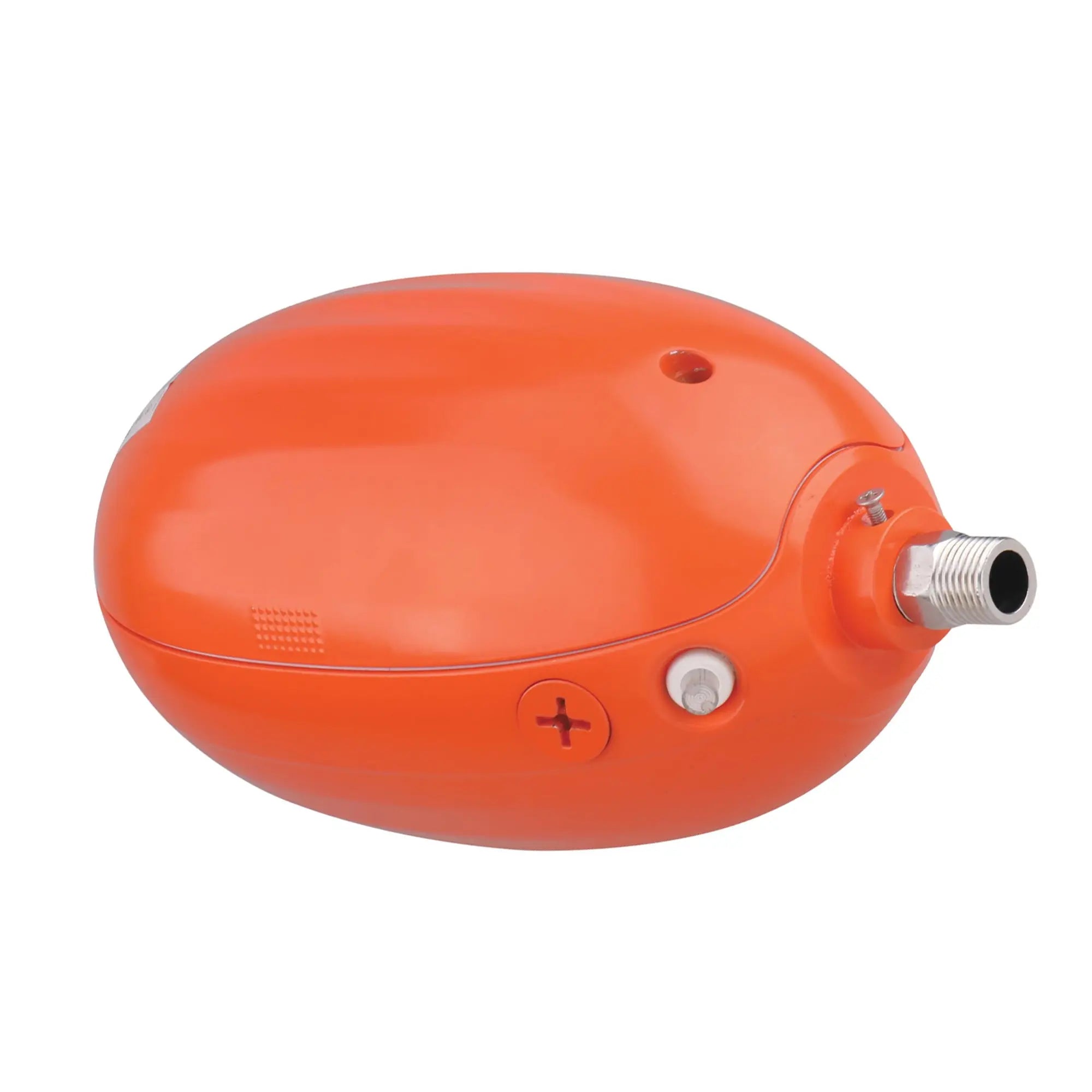

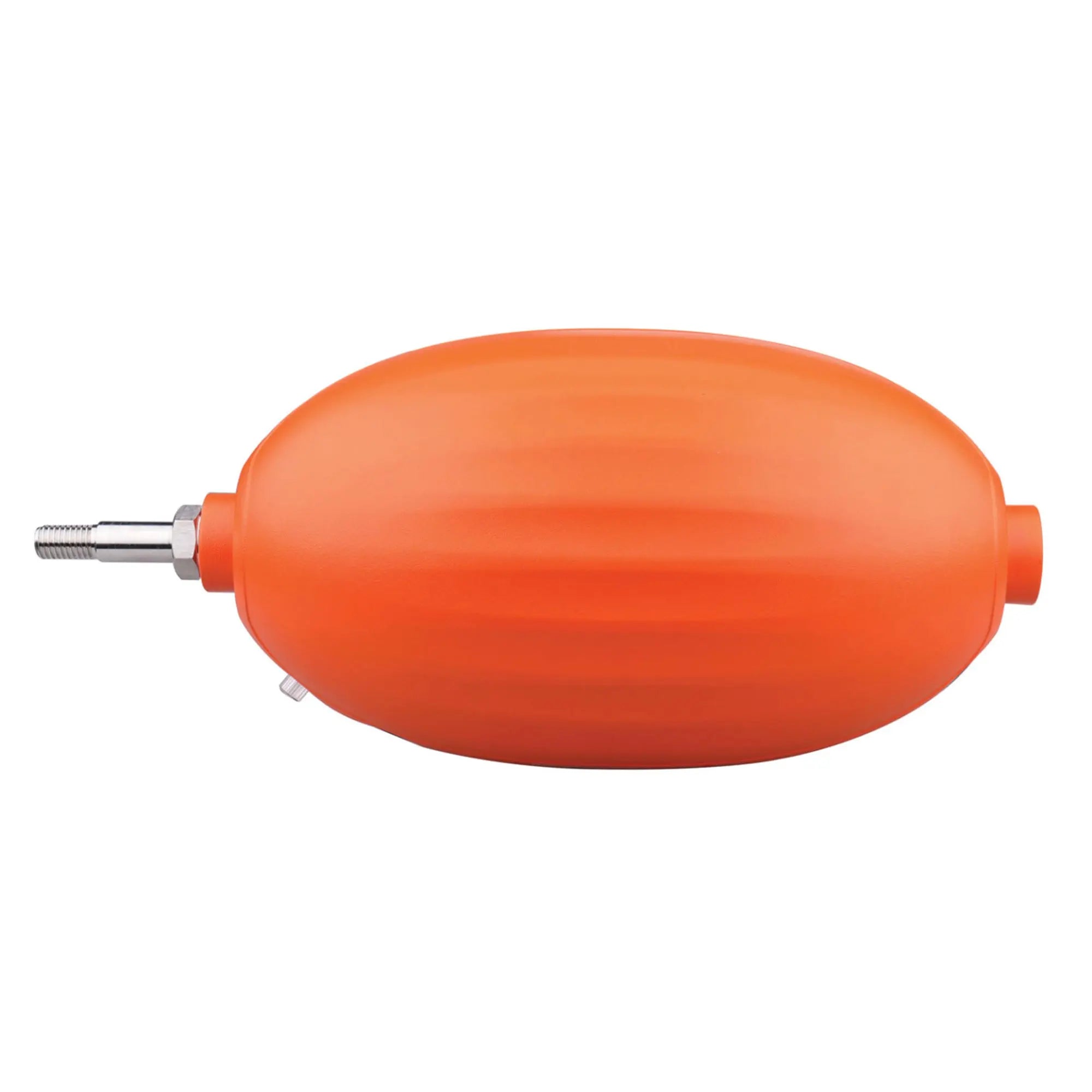

30W Emergency Battery Backup for UFO High Bay LED - 90 Min for emergency lighting-IP65 - AC 100-347V

Ensure workplace safety and code compliance with this rugged 30W Emergency Battery Backup, designed specifically for LED UFO High Bay fixtures. Engineered for industrial reliability, this "football-style" emergency driver seamlessly integrates with Gen 2 and wattage-selectable UFO lights to provide constant 30W power during outages. Fully IP65 wet-location rated and housed in durable die-cast aluminum, it is built to withstand harsh warehouse and manufacturing environments. The unit features an intelligent self-testing system and delivers a minimum of 90 minutes of illumination when main power fails, meeting strict UL924 and NFPA 101 safety standards.

Specifications

• Emergency Power Output: 30 Watts (Constant Power)

• Emergency Runtime: >90 Minutes (Standard Code Compliance)

• Input Voltage: 100-347V AC (Universal Voltage)

• Output Voltage: 170V DC

• IP Rating: IP65 (Waterproof & Dustproof / Wet Location Rated)

• Battery Type: Rechargeable Lithium-Ion

• Recharge Time: ~24 Hours

• Housing Material: Die-Cast Aluminum (Orange Finish)

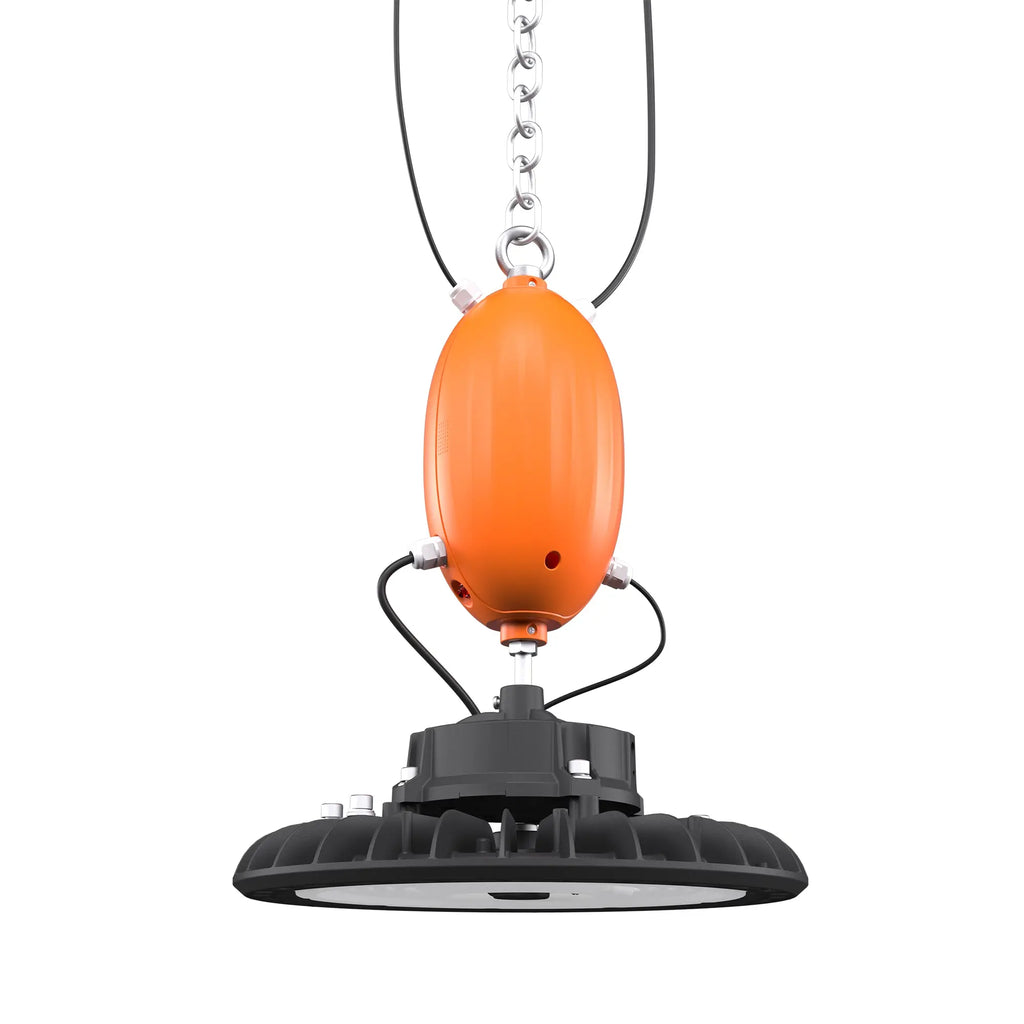

• Installation: Top-mount screw-in design (Plug-and-play with compatible Satco/Nuvo Gen 2 fixtures)

• Certifications: UL Listed, CEC Title 20 Compliant, RoHS

• Dimensions: Approx. 13.78" (H) x 5.6" (Diameter)

Applications

• Industrial Warehouses: Maintains safe egress lighting in high-ceiling aisles during blackouts.

• Manufacturing Plants: Protects workers near heavy machinery by preventing sudden loss of light.

• Big Box Retail & Distribution Centers: Ensures customer and employee safety in large, open floor plans.

• Gymnasiums & Hangars: Ideal for damp or high-dust environments due to the sealed IP65 design.

• Retrofit Projects: easily field-installable onto existing compatible UFO LED fixtures to bring facilities up to code.
