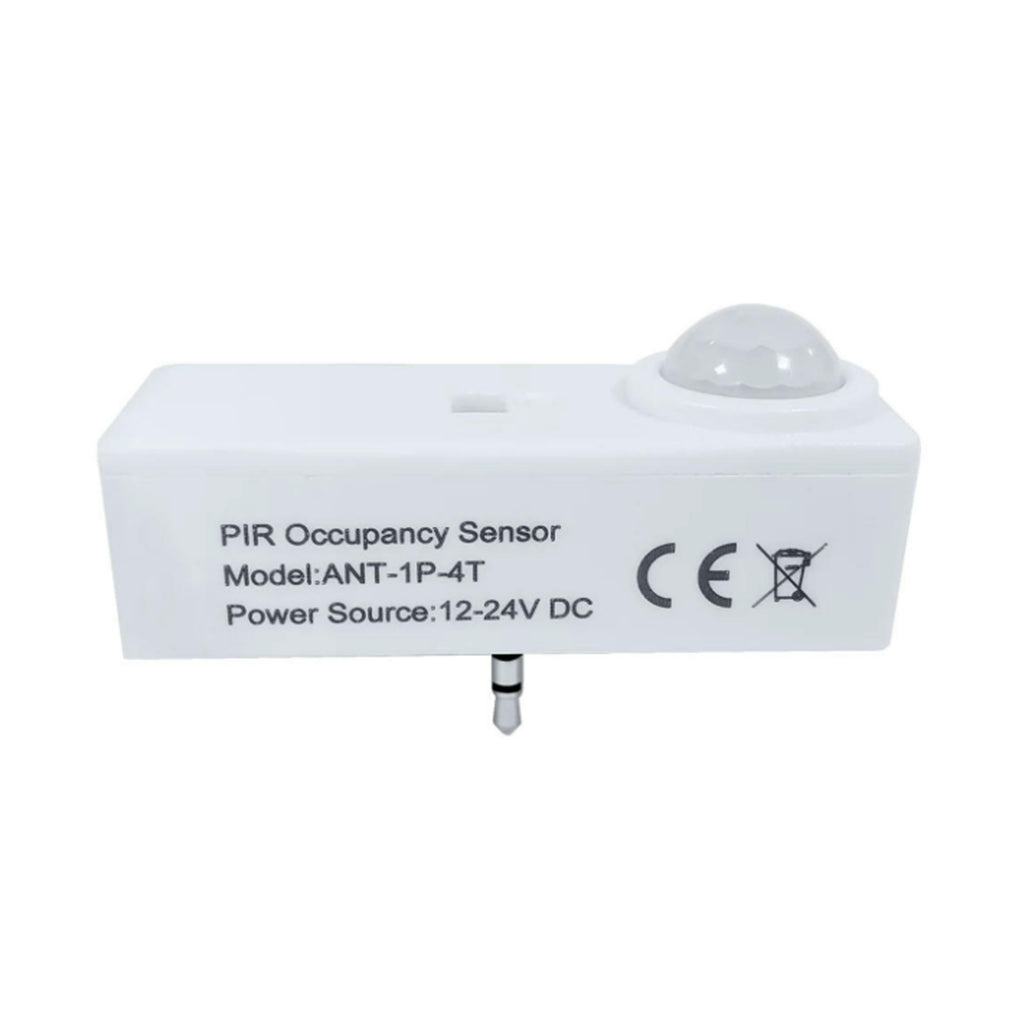

Sharkward PIR Occupancy Bi-Level & Daylight Harvesting Sensor | Model ANT-1P-4T

The Sharkward ANT-1P-4T is a high-performance Passive Infrared (PIR) Occupancy Sensor designed for bi-level lighting control and daylight harvesting in modern indoor environments. This advanced sensor intelligently adjusts lighting based on motion and ambient light, ensuring maximum energy efficiency without compromising occupant comfort.

Engineered for seamless integration into LED fixtures or dimming systems (0–10V), the ANT-1P-4T is ideal for offices, classrooms, and commercial spaces where smart, responsive lighting control is essential.

🔑 Key Features

• Bi-Level Dimming Control – Automatically adjusts lighting output based on occupancy for energy savings and comfort.

• Daylight Harvesting – Responds to ambient light levels to optimize brightness and minimize energy use.

• Customizable Settings – Easily adjust hold time, standby level, task light level, and standby time via dip switches or optional remote.

• Wide Detection Range – Provides 360° coverage with a detection height of up to 12 ft (4 m).

• Versatile Power Supply – Operates with 12–24V DC, compatible with most 0–10V dimmable LED drivers or ballasts.

• Easy Installation – Compact design for simple mounting inside indoor lighting fixtures.

⚙️ Specifications

• Model: ANT-1P-4T

• Power Supply: 12–24V DC, >50mA

• Dimming Control Output: 0–10V, max. 25mA sinking current

• Mounting Height: Up to 12 ft (4 m)

• Detection Angle: 360°

• Operating Temperature: -20°C to 60°C

• IP Rating: IP20 (indoor use)

💡 Applications

• Office buildings

• Classrooms and lecture halls

• Retail stores and showrooms

• Corridors, meeting rooms, and rest areas

• Any indoor space requiring energy-efficient, automated lighting control
