Description

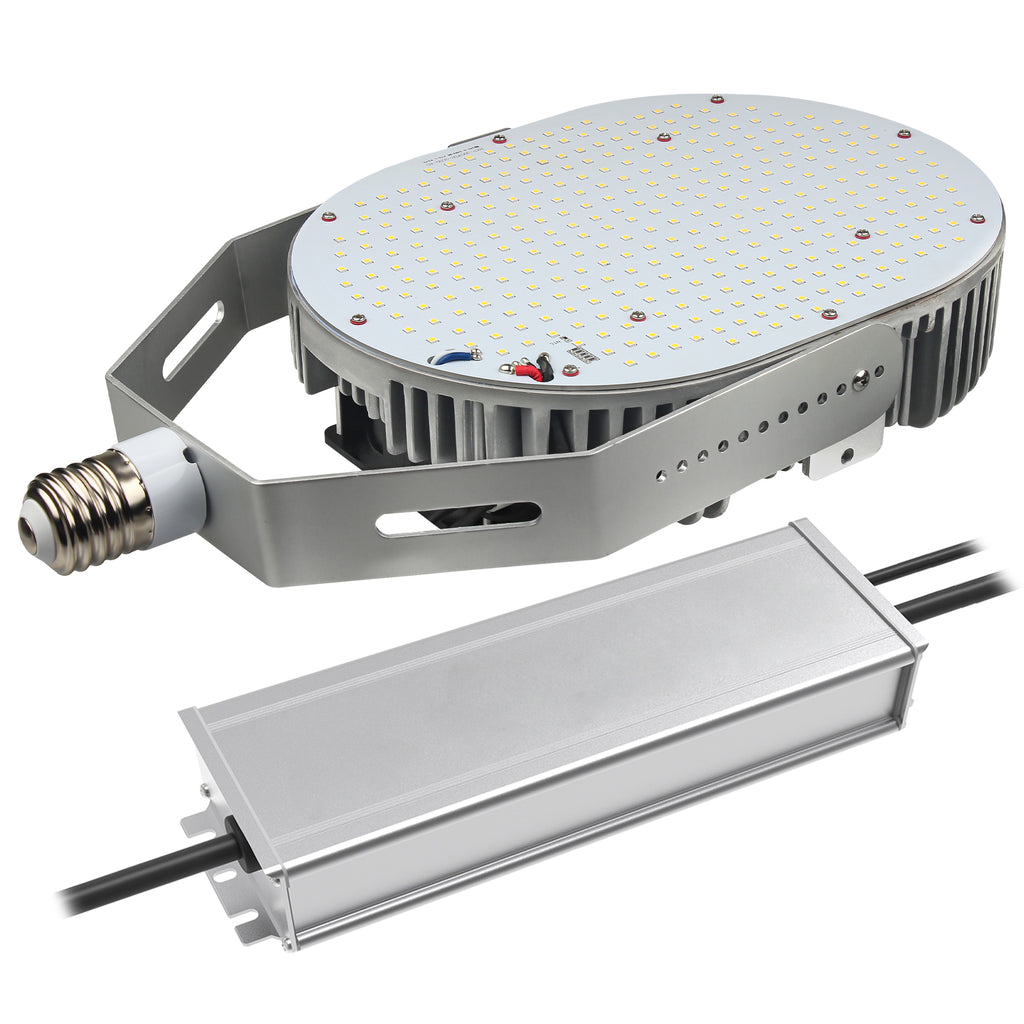

The TANLITE LED retrofit kit offers superior performance and value compared to competitors. Featuring a sleek, weatherproof design that accommodates outdoor applications, its advanced lighting technology combines an IP65-rated LED driver and heat management system. This highly efficient lighting system has a long lifespan of 100,000+ hours and is perfect for replacing 150-1000W Metal Halide lights, with energy savings of up to 80%.
Product features:

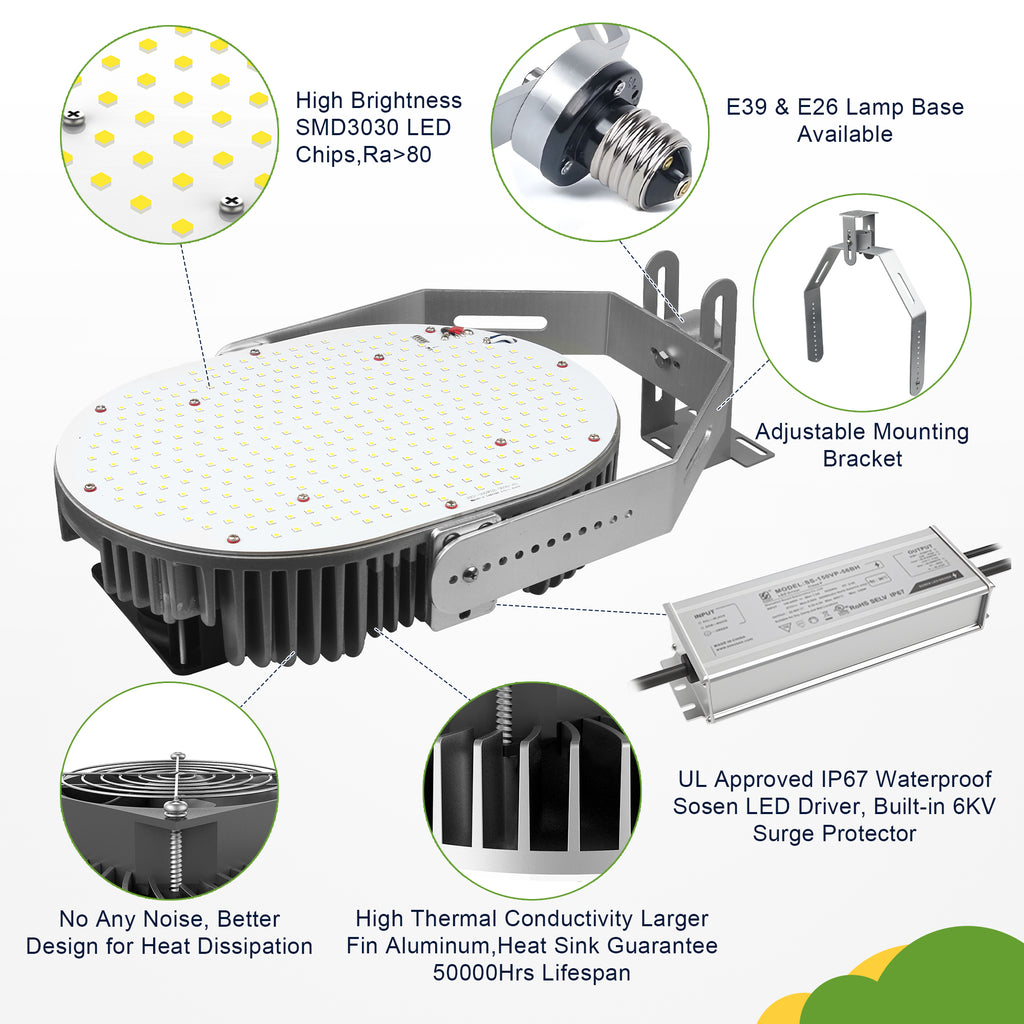

- New style and highly efficient wide-range input

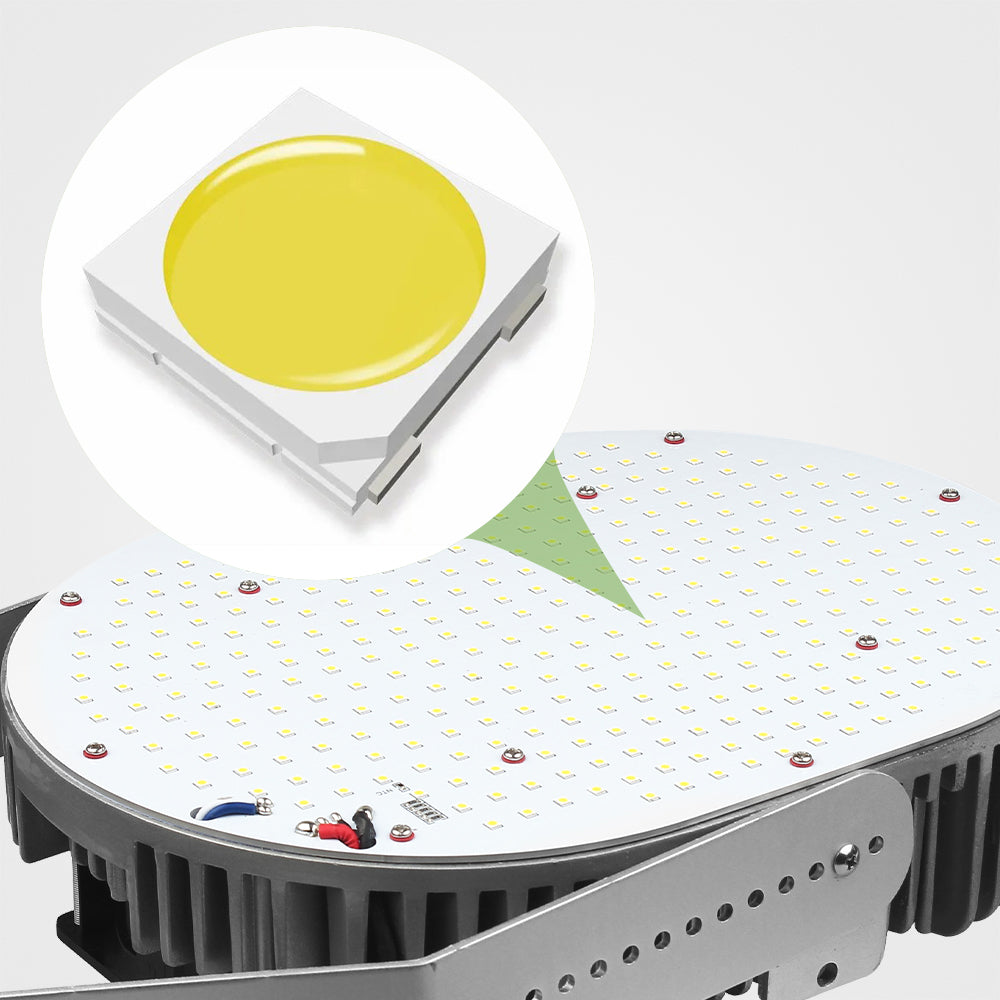

- CREE Chip/UL approved Meanwell Driver/SUNON Fan

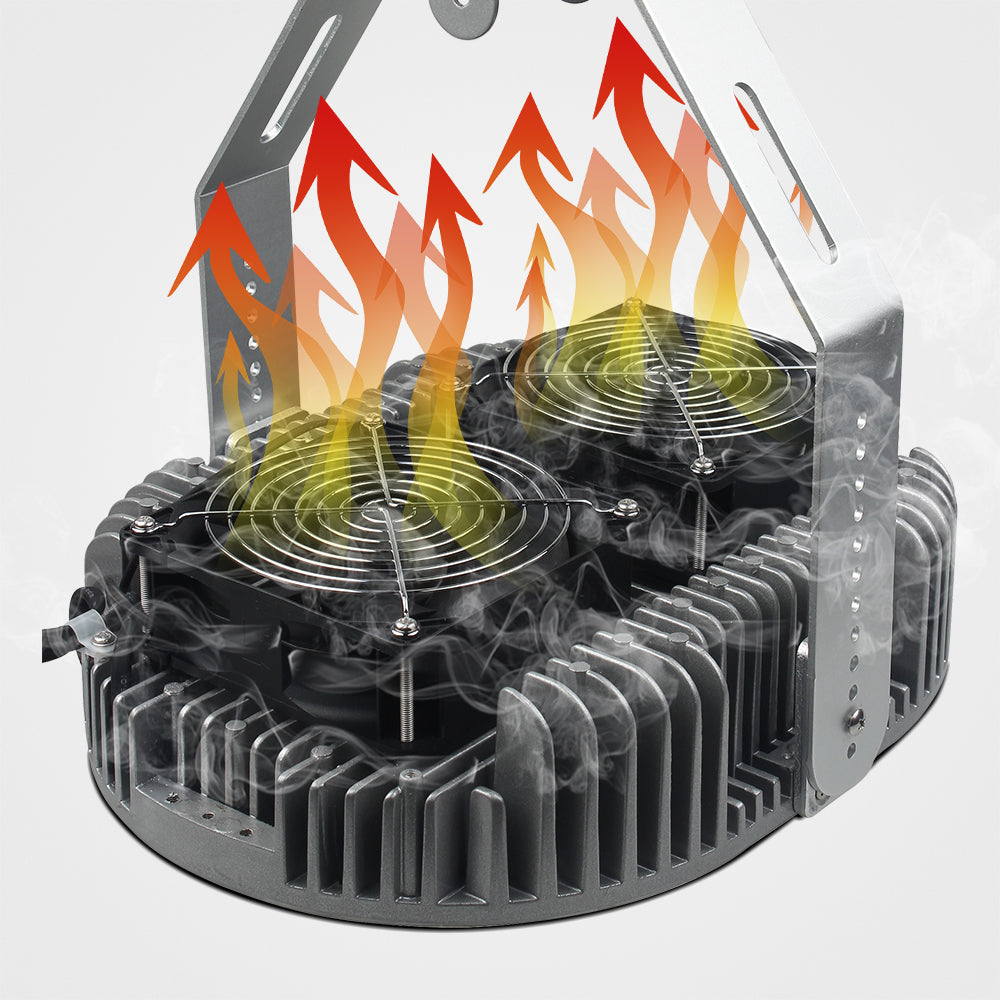

- Long lifespan, dimmable, and good heat dissipation
- Direct replacement for Metal Halide, Easy Installation, Labor cost-saving
- Fits many different fixtures to replace traditional lamps
- Adjustable bracket for different direction lighting
Application:

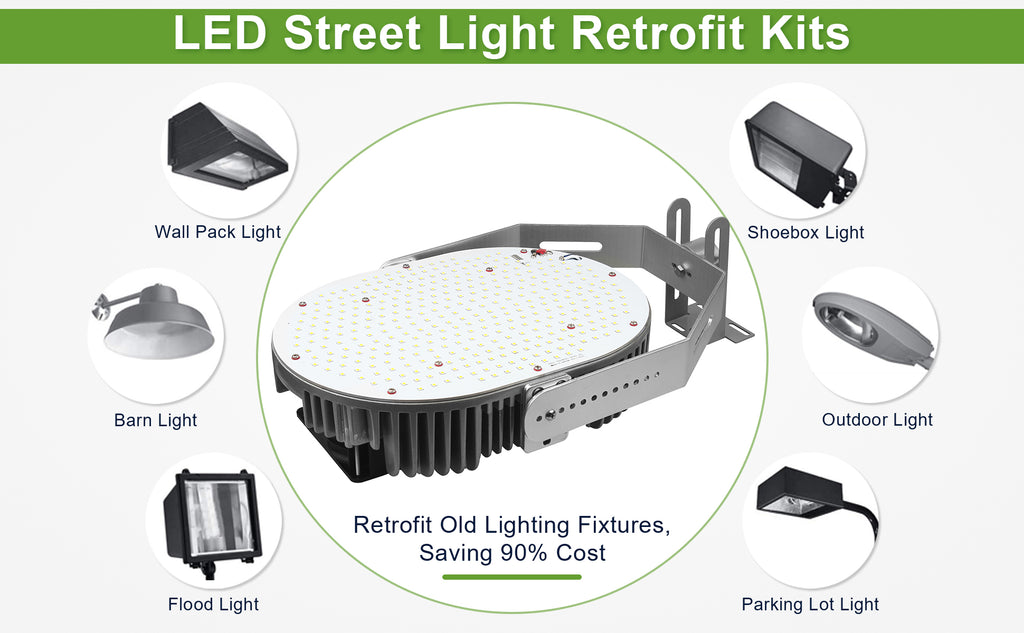

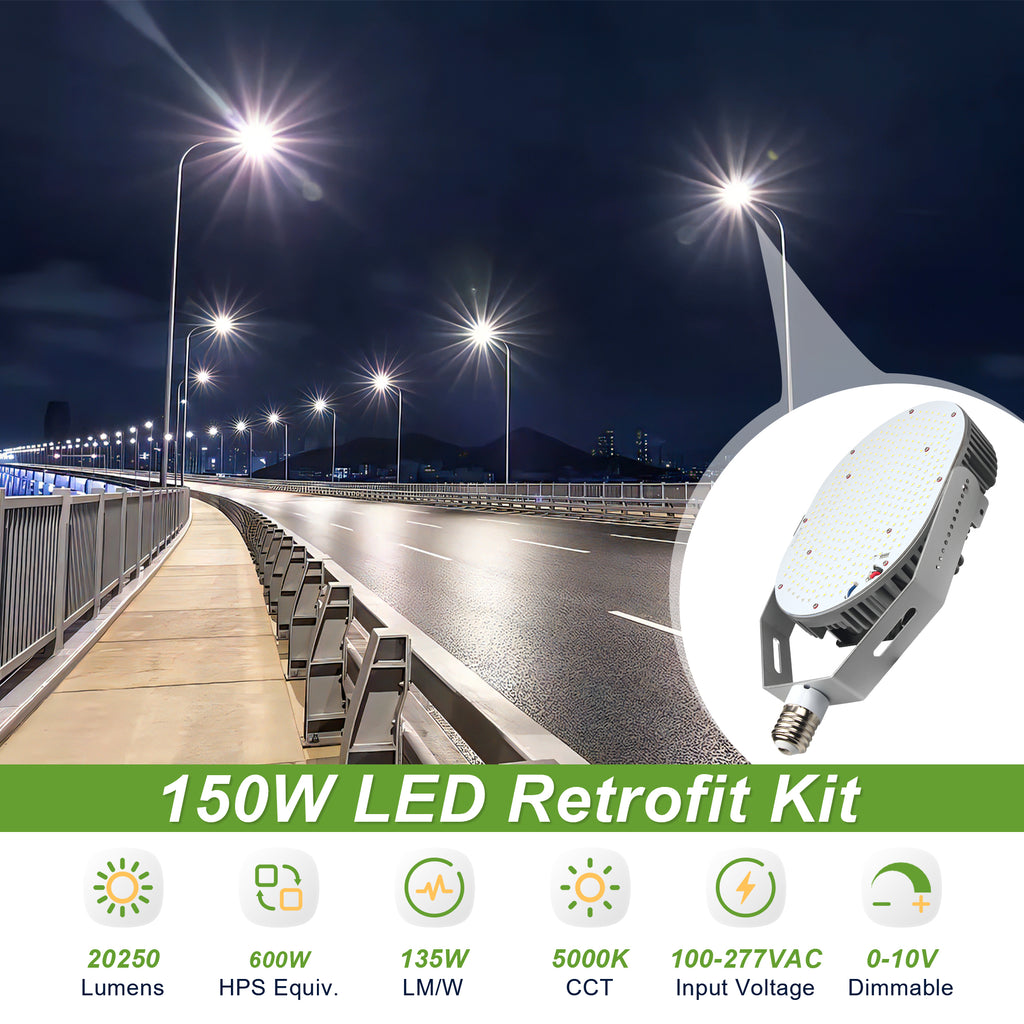

Retrofitting Parking lots, shoeboxes, streetlights, floodlights, wall packs, high bays, and canopies have just been made simple.

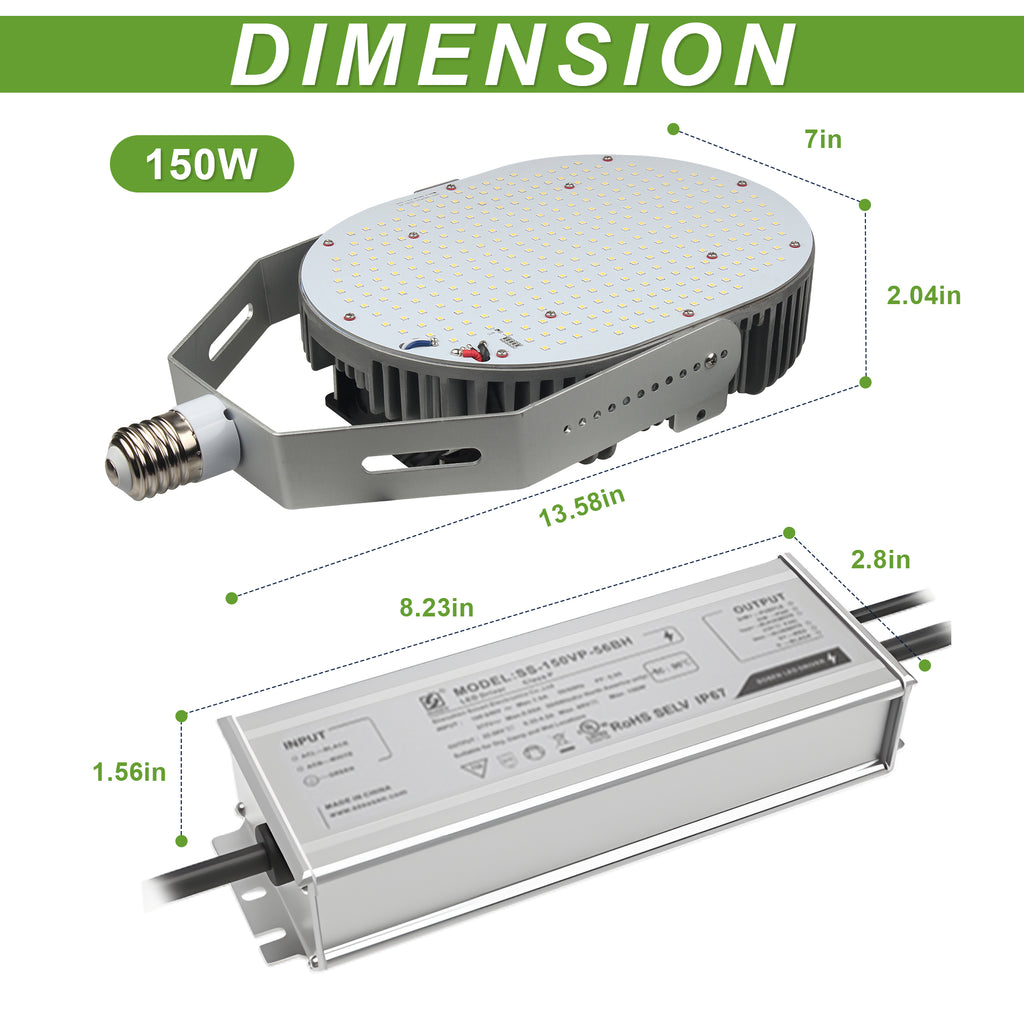

Specifications
- Wattage 150W
- Can fit E26 base/E39 base
- Metal Halide Equivalent: 600W HID
- Lumens: 20,250 Lumens
- 100,000+ Hours Lamp Life
- Phillips LED Source and Meanwell Driver
- LPW: Lumen/Watt:130-135lm/W
- Working Environment Temperature: -20~+45℃
- Operating Humidity 20%-90% RH
- Storage Temperature 10%-95%
- CRI: >80ra
- CCT: 5000K
- Warranty: 5 years
Warning: Please make sure the power is off before installation
- Fix the U bracket on the installation bracket with screws
- Fix the lamp body on the bracket with screws
- Adjust the length, height, etc. of the lamp body and bracket as per your specific requirements.
- Takedown all screw bases and ballasts in the fixtures before installation.
- Fix the driver on the fixture of the lamp with screws, then fix the products with a fixed bracket on the fixture
- Connect correctly the input wire of the lamp body and the output wire of the driver
- If the lamps are installed vertically, take high-bay fixtures
- Connect the driver with the local electric supply, insulation measures are needed when connecting the wires
- Turn on the power after the product is properly installed, then it can work normally.
